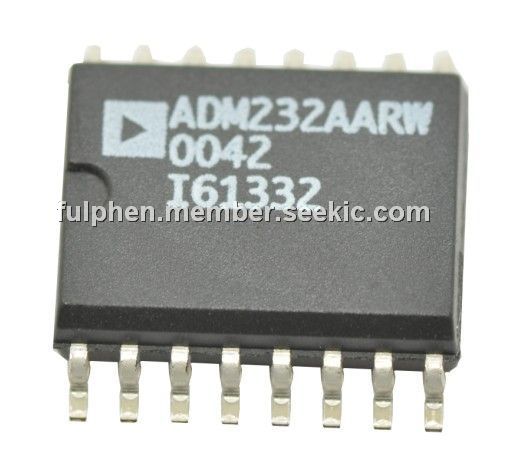

Product Summary

The ADM232AARW line driver/receiver is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM232AARW features a low power shutdown mode that reduces power dissipation to less than 5 mW, making them ideally suited for battery powered equipment. Two receivers remain enabled during shutdown on the ADM232AARW. The ADM232AARW does not require any external component and is particularly useful in application where printed circuit board space is critical. Applications of the ADM232AARW include Computers, Peripherals, Modems, Printers, Instruments.

Parametrics

ADM232AARW absolute maximum ratings: (1)Vcc: +6 V; (2)V+: (VCC – 0.3 V) to +13 V; (3)V–: +0.3 V to –13 V; (4)Input Voltages, TIN: –0.3 V to (VCC + 0.3 V); (5)RIN: ±30 V; (6)Output Voltages, TOUT: (V+, + 0.3 V) to (V–, – 0.3 V); (7)ROUT: –0.3 V to (VCC + 0.3 V); (8)Short Circuit Duration, TOUT: Continuous.

Features

ADM232AARW features: (1)200 kB/s Transmission Rate; (2)Small (0.1 mF) Charge Pump Capacitors; (3)Single 5 V Power Supply; (4)Meets All EIA-232-E and V.28 Specifications; (5)Two Drivers and Two Receivers; (6)On-Board DC-DC Converters; (7)±9 V Output Swing with +5 V Supply; (8)±30 V Receiver Input Levels; (9)Pin Compatible with MAX222/MAX232A/MAX242.

Diagrams

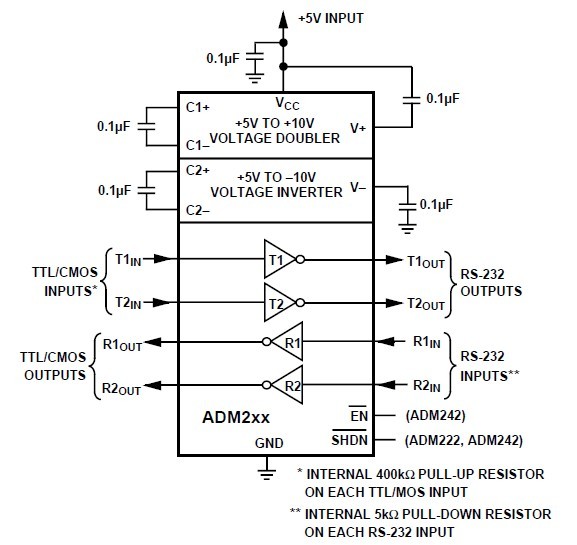

ADM232AARW BLOCK DIAGRAM
