Product Summary

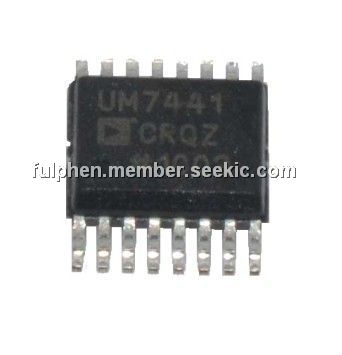

The ADUM7441CRQZ is a 4-channel digital isolator based on the iCoupler technology. The ADUM7441CRQZ quad 1 kV digital isolation device is packaged in a small 16-lead QSOP. While most 4-channel isolators come in 16-lead wide SOIC packages, the ADUM7441CRQZ frees almost 70% of board space and yet can still withstand high isolation voltage and meet regulatory requirements such as UL and CSA standards (pending). In addition to the space savings, the ADUM7441CRQZ offers a lower price than 2.5 kV or 5 kV isolators where only functional isolation is needed. Applications of the ADUM7441CRQZ are: General-purpose, multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceivers, Industrial field bus isolation.
Parametrics
ADUM7441CRQZ absolute maximum ratings: (1)Storage Temperature (TST) Range: -65℃ to +150℃; (2)Ambient Operating Temperature (TA): -40℃ to +105℃; (3)Supply Voltages (VDD1, VDD2): -0.5 V to +7.0 V; (4)Input Voltages (VIA, VIB, VIC, VID): -0.5 V to VDDI + 0.5 V; (5)Output Voltages (VOA, VOB, VOC, VOD): -0.5 V to VDDO + 0.5 V; (6)Common-Mode Transients: -100 kV/μs to +100 kV/μs.
Features
ADUM7441CRQZ features: (1)Small, 16-lead QSOP; (2)1000 V rms isolation rating; (3)Bidirectional communication; (4)Up to 25 Mbps data rate (NRZ); (5)3 V/5 V level translation; (6)High temperature operation: 105℃; (7)High common-mode transient immunity: >15 kV/μs.

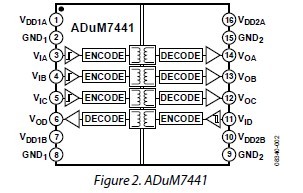

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADUM7441CRQZ |
|
IC ISOLATOR DGTL QUAD 16QSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADUM7441CRQZ-RL7 |
|
IC DIGITAL ISOLATOR 4CH 16QSOP |
Data Sheet |
|
|
||||||||||||||||||
