Product Summary

The CY7C68001-56PVXC is a High Speed USB Interface Device. It is designed to work with any external master, such as standard microprocessors, DSPs, ASICs, and FPGAs to enable USB 2.0 support for any peripheral design. SX2 has a built-in USB transceiver and serial interface engine (SIE), along with a command decoder to send and receive USB data. The CY7C68001-56PVXC has four endpoints that share a 4-KB FIFO space for maximum flexibility and throughput, and Control Endpoint 0. SX2 has three address pins and a selectable 8- or 16- bit data bus for command and data input or output. The applications of the CY7C68001-56PVXC include: DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless local area network (LAN), MP3 players, Networking, Printers.

Parametrics

CY7C68001-56PVXC absolute maximum ratings: (1)Storage temperature: –65℃ to +150℃; (2)Ambient temperature with power supplied: 0℃ to +70℃; (3)Supply voltage to ground potential: –0.5 V to +4.0 V; (4)DC input voltage to any pin: 5.25 V; (5)DC voltage applied to outputs in High-Z state: –0.5 V to VCC + 0.5 V; (6)Power dissipation: 936 mW; (7)Static discharge voltage: > 2000 V.

Features

CY7C68001-56PVXC features: (1)USB 2.0-certified compliant; (2)Operates at high (480 Mbps) or full (12 Mbps) speed; (3)Supports four configurable endpoints that share a 4-KB FIFO space; (4)Standard 8- or 16-bit external master interface; (5)Integrated phase-locked loop (PLL); (6)3.3 V operation, 5 V tolerant I/Os; (7)56-pin SSOP and QFN package; (8)Complies with most device class specifications.

Diagrams

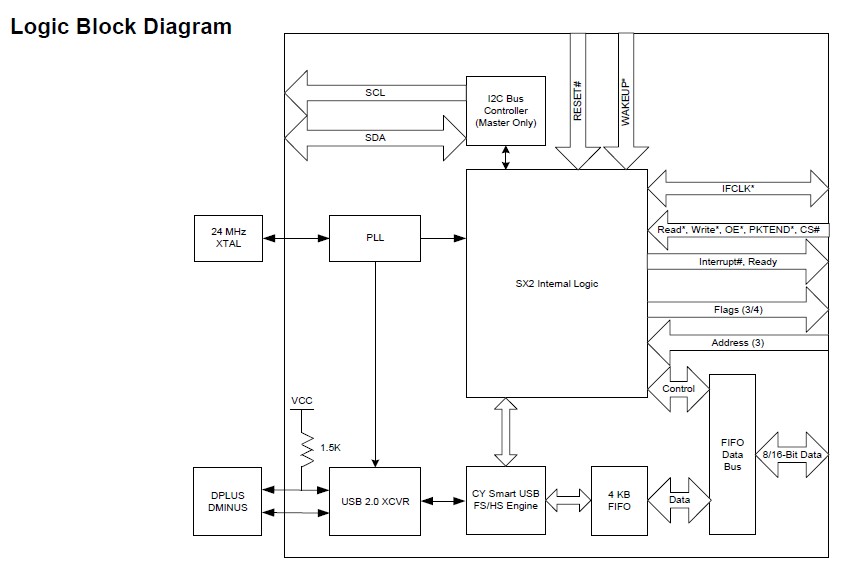

CY7C68001-56PVXC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CY7C68001-56PVXC
CY7C68001-56PVXC

Cypress Semiconductor

I/O Controller Interface IC 8/16 Bit Datapath LO COM

Data Sheet

0-1: $7.12
1-25: $6.14
25-50: $5.98
50-100: $5.82
CY7C68001-56PVXCT
CY7C68001-56PVXCT

Cypress Semiconductor

I/O Controller Interface IC 8/16 Bit Datapath LO COM

Data Sheet

0-691: $4.73
691-1000: $4.40
