Product Summary

The CYRF69103-40LFXC is a complete Radio System-on-Chip device, providing a complete RF system solution with a single device and a few discrete components. The CYRF69103-40LFXC is designed to implement low cost wireless systems operating in the worldwide 2.4 GHz Industrial, Scientific, and Medical (ISM) frequency band (2.400 GHz to 2.4835 GHz). The applications of the CYRF69103-40LFXC include: Wireless HID devices: Mice, Remote Controls, Presenter tools, Barcode scanners, POS terminal; General purpose wireless applications: Industrial applications, Home automation, White goods, Consumer electronics, Toys.

Parametrics

CYRF69103-40LFXC absolute maximum ratings: (1)Storage Temperature: –40 ℃ to +90 ℃; (2)Ambient Temperature with Power Applied: 0 ℃ to +70 ℃; (3)Supply Voltage on any power supply pin relative to VSS: –0.3 V to +3.9 V; (4)DC Voltage to Logic Inputs: –0.3 V to VIO + 0.3 V; (5)DC Voltage applied to Outputs in High Z State: –0.3 V to VIO + 0.3 V; (6)Static Discharge Voltage (Digital): >2000 V; (7)Static Discharge Voltage (RF): 1100 V; (8)Latch up Current: +200 mA, –200 mA; (9)Ground Voltage: 0 V; (10)FOSC (Crystal Frequency): 12 MHz ±30 ppm.

Features

CYRF69103-40LFXC features: (1)Single Device, Two Functions; (2)Flash Based Microcontroller Function; (3)Industry leading 2.4 GHz Radio Transceiver Function; (4)Component Reduction; (5)Flexible I/O; (6)Operating Voltage from 1.8 V to 3.6 V DC; (7)Operating Temperature from 0 to 70 ℃; (8)Pb-free 40-pin QFN Package; (9)Advanced Development Tools based on Cypress’s PSoCR Tools.

Diagrams

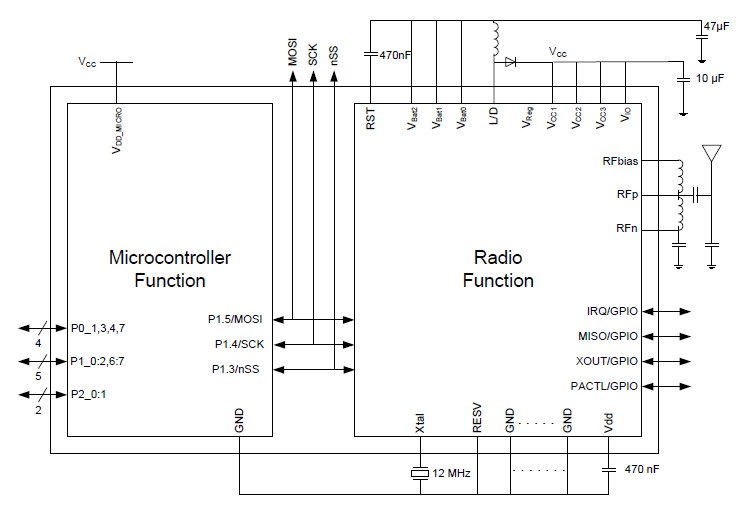

CYRF69103-40LFXC block diagram
