Product Summary
The IDT7007S-45PF is a high-speed 32K × 8 Dual-Port Static RAM. The IDT7007S-45PF is designed to be used as a stand-alone 256K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 16-bit-or-more word systems. Using the IDT MASTER/ SLAVE Dual-Port RAM approach in 16-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. The IDT7007S-45PF is ideally suited to military temperature applications demanding the highest level of performance and reliability.
Parametrics
IDT7007S-45PF absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: -0.5 to +7.0V; (2)TBIAS, Temperature Under Bias: -55 to +125℃; (3)TSTG, Storage Temperature: -55 to +120℃; (4)IOUT, DC Output Current: 50mA.
Features
IDT7007S-45PF features: (1)M/S = H for BUSY output flag on Master, M/S = L for BUSY input on Slave; (2)Interrupt Flag; (3)On-chip port arbitration logic; (4)Full on-chip hardware support of semaphore signaling between ports; (5)Fully asynchronous operation from either port; (6)TTL-compatible, single 5V (±10%) power supply; (7)Available in 68-pin PGA and PLCC and a 80-pin TQFP; (8)Industrial temperature range (-40℃ to +85℃) is available for selected speeds.

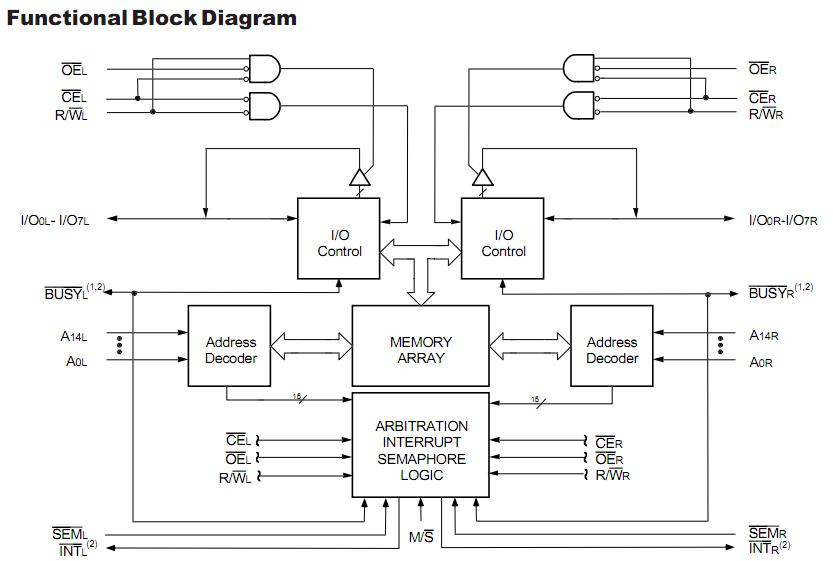

Diagrams
 |
