Product Summary

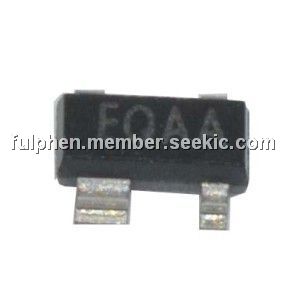

The MAX836EUS+T is a micropower voltage monitor. It contains a 1.204V precision bandgap reference and a comparator in a SOT143 package. The MAX836EUS+T has an open-drain, n-channel output driver. The applications of the device include Precision Battery Monitor, Load Switching, Battery-Powered Systems and Threshold Detectors.

Parametrics

MAX836EUS+T absoluete maximum ratings: (1)VCC, OUT to GND: -0.3V to 12V; (2)Input Current, VCC: 20mA; IN: 10mA; (3)Output Current, OUT: 20mA; (4)Rate of Rise, VCC: 100V/μs; (5)Operating Temperature Range: -40 to +85℃; (6)Storage Temperature Range: -65 to +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

MAX836EUS+T features: (1)±1.25% Precision Voltage Threshold; (2)SOT143 Package; (3)Low Cost; (4)< 5μA Typical Supply Current; (5)Open-Drain Output.

Diagrams

MAX836EUS+T typical operating circuit
