Product Summary

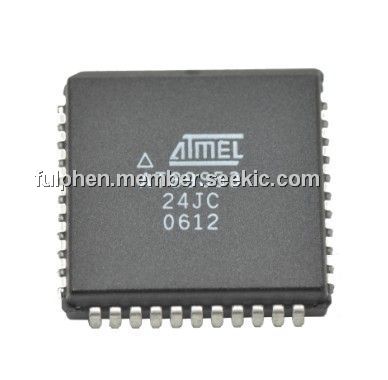

The AT89S53-24JC is a low-power, high-performance CMOS 8-bit microcomputer with 12K bytes of Downloadable Flash programmable and erasable read only memory.

Parametrics

AT89S53-24JC absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.

Features

AT89S53-24JC features:(1)Compatible with MCS-51Products; (2)12K Bytes of In-System Reprogrammable Downloadable Flash Memory; (3)4.0V to 6V Operating Range; (4)Fully Static Operation: 0 Hz to 24 MHz; (5)Three-Level Program Memory Lock; (6)256 x 8-bit Internal RAM; (7)32 Programmable I/O Lines; (8)Three 16-bit Timer/Counters; (9)Nine Interrupt Sources; (10)Programmable UART Serial Channel; (11)SPI Serial Interface; (12)Low Power Idle and Power Down Modes; (13)Interrupt Recovery From Power Down; (14)Programmable Watchdog Timer; (15)Dual Data Pointer; (16)Power Off Flag.

Diagrams

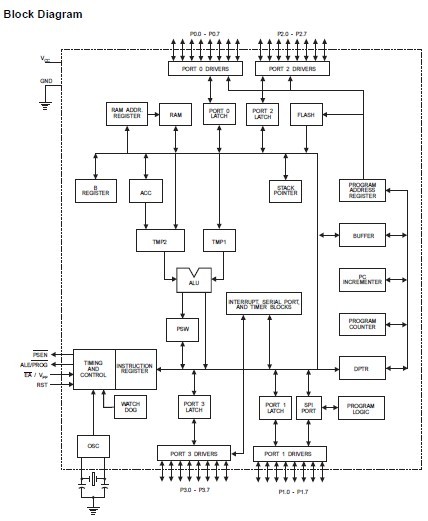

AT89S53-24JC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT89S53-24JC
AT89S53-24JC

Atmel

8-bit Microcontrollers (MCU) w/12k

Data Sheet

Negotiable
