NCP1200D60R2G

PWM Current-Mode Controller, 8SOIC, 250 mA, 40 kHz, 16 V, NCP1200D60R2G

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.50

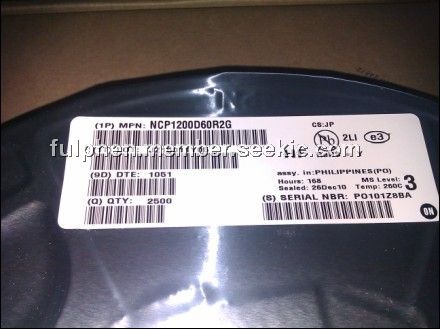

PartNumber:: NCP1200D60R2G

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dora's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:NCP1200D60R2G
US $0.40 - 0.50
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
Quantity:

piece

Product Summary

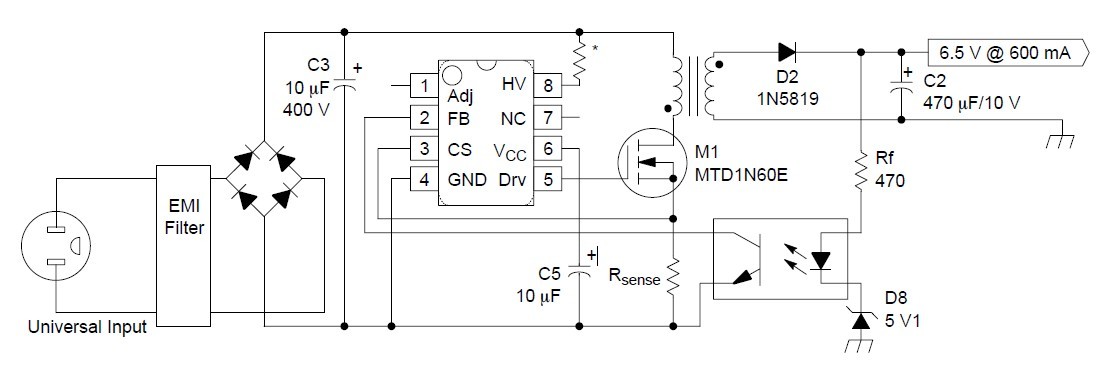

The NCP1200D60R2G is a PWM Current-Mode Controller which represents a major leap toward ultra-compact Switchmode Power Supplies. Due to a novel concept, the NCP1200D60R2G allows the implementation of a complete offline battery charger or a standby SMPS with few external components. Furthermore, an integrated output short-circuit protection lets the designer build an extremely low-cost AC-DC wall adapter associated with a simplified feedback scheme. The applications of the NCP1200D60R2G include: AC-DC Adapters, Offline Battery Chargers, Auxiliary/Ancillary Power Supplies (USB, Appliances, TVs, etc.).

Parametrics

NCP1200D60R2G absolute maximum ratings: (1)Power Supply Voltage VCC: 16 V; (2)Thermal Resistance Junction-to-Air, PDIP-8 version: 100℃/W; (3)Thermal Resistance Junction-to-Air, SOIC version: 178℃/W; (4)Maximum Junction Temperature:150℃; (5)Typical Temperature Shutdown: 140℃; (6)Storage Temperature Range: -60 to +150 ℃; (7)ESD Capability, HBM Model (All Pins except VCC and HV): 2.0 kV; (8)ESD Capability, Machine Model: 200 V; (9)Maximum Voltage on Pin 8 (HV), pin 6 (VCC) Grounded: 450 V; (10)Maximum Voltage on Pin 8 (HV), Pin 6 (VCC) Decoupled to Ground with 10 μF: 500 V; (11)Minimum Operating Voltage on Pin 8 (HV): 30 V.

Features

NCP1200D60R2G features: (1)No Auxiliary Winding Operation; (2)Internal Output Short-Circuit Protection; (3)Extremely Low No-Load Standby Power; (4)Current-Mode with Skip-Cycle Capability; (5)Internal Leading Edge Blanking; (6)250 mA Peak Current Source/Sink Capability; (7)Internally Fixed Frequency at 40 kHz, 60 kHz and 100 kHz; (8)Direct Optocoupler Connection; (9)Built-in Frequency Jittering for Lower EMI; (10)SPICE Models Available for TRANsient and AC Analysis; (11)Internal Temperature Shutdown; (12)Pb-Free Packages are Available.
