Product Summary

The ATMEGA8515L-8AU is an 8-bit microcontroller with 8K bytes in-system programmable flash.

Parametrics

ATMEGA8515L-8AU absolute maximum ratings: (1)speed: 8MHz; (2)power supply: 2.7 to 5.5V; (3)package: 44A.

Features

ATMEGA8515L-8AU features: (1)One 8-bit Timer/Counter with Separate Prescaler and Compare Mode; (2)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (3)Three PWM Channels; (4)Programmable Serial USART; (5)Master/Slave SPI Serial Interface; (6)Programmable Watchdog Timer with Separate On-chip Oscillator; (7)On-chip Analog Comparator; (8)Power-on Reset and Programmable Brown-out Detection; (9)Internal Calibrated RC Oscillator; (10)External and Internal Interrupt Sources; (11)Three Sleep Modes: Idle, Power-down and Standby.

Diagrams

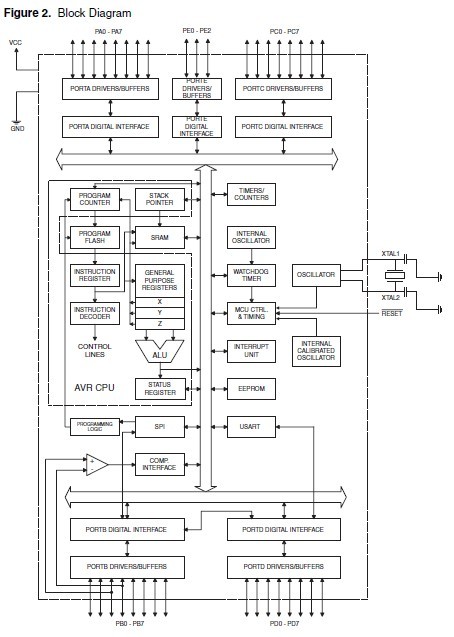

ATMEGA8515L-8AU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

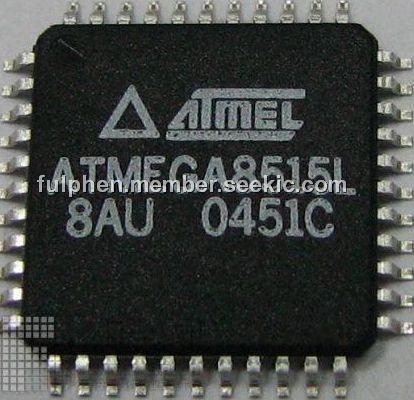

ATMEGA8515L-8AU
ATMEGA8515L-8AU
Atmel
8-bit Microcontrollers (MCU) 8kB Flash 0.5kB EEPROM 35 I/O Pins
Data Sheet
0-1: $1.60
1-10: $1.52
10-25: $1.42
25-100: $1.15
ATMEGA8515L-8AUR
ATMEGA8515L-8AUR
Atmel
8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 512B SRAM-8MHz, IND
Data Sheet
0-1670: $1.31
1670-2000: $1.31
