Product Summary
The TMS320DM642AZDK6 is a Video/Imaging Fixed-Point Digital Signal Processor. It is based on the second generation high-performance, advanced VelociTI. very-long-instruction-word VLIW) architecture (VelociTI.2.) developed by Texas Instruments (TI), making the TMS320DM642AZDK6 an excellent choice for digital media applications. The TMS320DM642AZDK6 is a code-compatible member of the C6000 DSP platform.
Parametrics
TMS320DM642AZDK6 absolute maximum ratings: (1)Supply voltage ranges: CVDD: -0.3 V to 1.8 V; DVDD: -0.3 V to 4 V; (2)Input voltage ranges: (except PCI), VI: -0.3 V to 4 V; (PCI), VIP: -0.5 V to DVDD + 0.5 V; (3)Output voltage ranges: (except PCI), VO -0.3 V to 4 V; (PCI), VOP: -0.5 V to DVDD + 0.5 V; (4)Operating case temperature ranges, TC: (default) 0℃ to 90℃; (A version) [A-500, A-600]: -40℃ to 105℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Package Temperature Cycling: Temperature Range -40℃ to 125℃; Number of Cycles 500.
Features
TMS320DM642AZDK6 features: (1)High-Performance Digital Media Processor; (2)Instruction Set Features; (3)L1/L2 Memory Architecture; (4)64-Bit External Memory Interface (EMIF); (5)Inter-Integrated Circuit (I2C Bus.); (6)Two Multichannel Buffered Serial Ports; (7)Sixteen General-Purpose I/O (GPIO) Pins; (8)0.13μm/6-Level Cu Metal Process (CMOS).

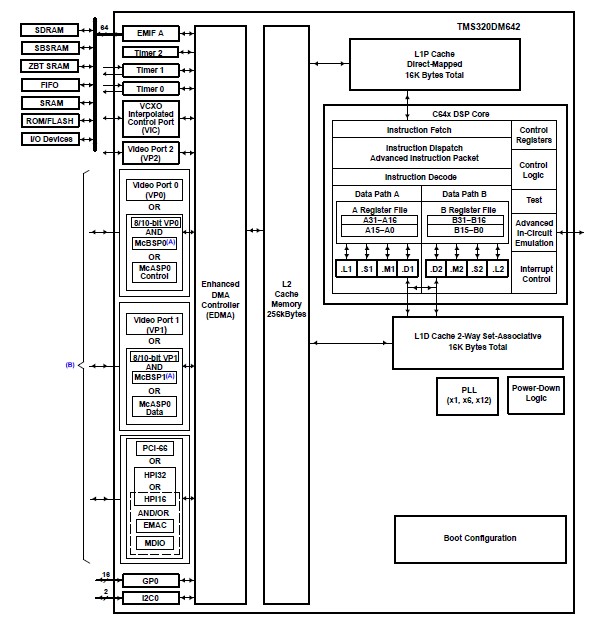

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

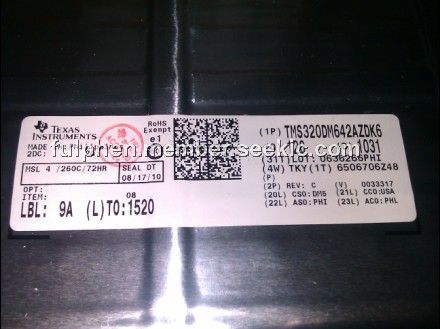

TMS320DM642AZDK6 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Video/Imaging Fixed-Point DSP |
Data Sheet |
|
|
|||||||||
