Product Summary

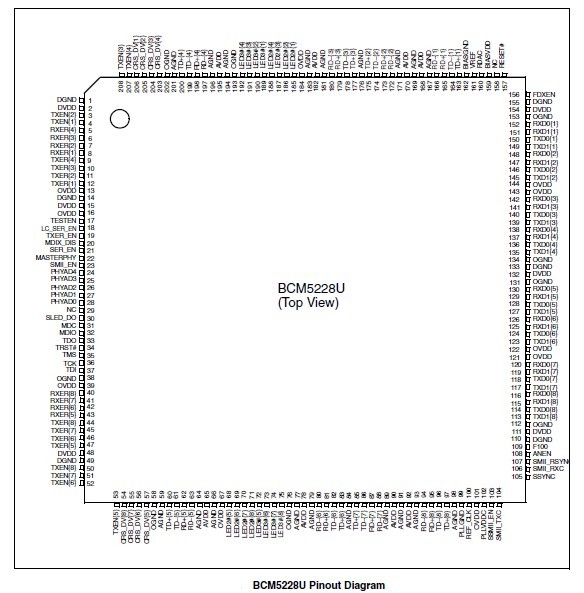

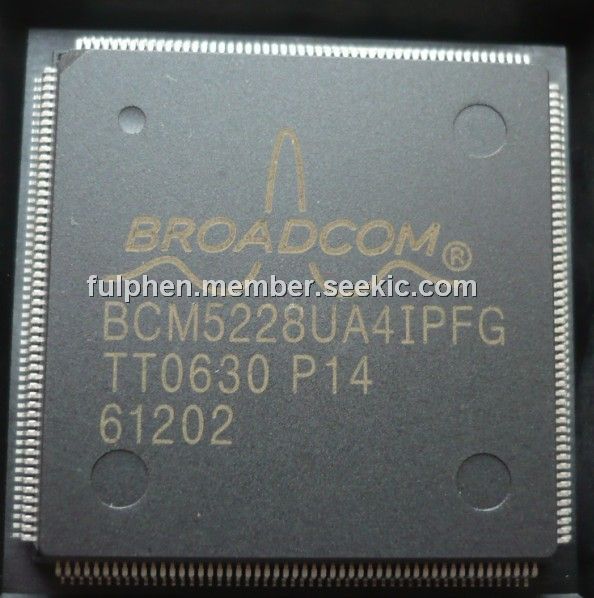

The BCM5228UA4IPFG is a 10/100 BASE-TX/FX OCTA L-Φ. transceiver. It is a single-chip device containing eight independent Fast Ethernet transceivers. Each transceiver performs all of the physical layer interface functions for BCM5228UA4IPFG full-duplex or half-duplex Ethernet on Category 5 unshielded twisted pair (UTP) cable and 10BASE-T full-duplex or half-duplex Ethernet on Category 3, 4 or 5 UTP cable. Each port may also be configured for BCM5228UA4IPFG full-duplex or half-duplex transmission over fiber optic cabling when paired with an external fiber optic line driver and receiver.
Parametrics
BCM5228UA4IPFG absolute maximum ratings: (1)Supply Voltage, VDD: GND-0.3 to 2.75V; (2)Input Voltage, VI: GND-0.3 to OVDD+0.3V; (3)Input Current, II: ±10mA; (4)Storage Temperature, TSTG: -40 to +125℃; (5)Electrostatic Discharge, VESD: 1000V.
Features
BCM5228UA4IPFG features: (1)single-chip, eight-port Fast Ethernet transceiver; (2)HPAuto-MDIX; (3)low-power 2.5V CMOS technology; (4)compatible with 2.5V I/O and 3.3V I/O; (5)reduced Media Independent Interface (RMII); (6)serial Media Independent Interface (SMII); (7)fully integrated digital adaptive equalization; (8)up to 150 meters of error-free operation; (9)full-duplex support; (10)twisted-pair or fiber support on any or all ports; (11)interrupt output capability; (12)208-pin PQFP or 256-pin FBGA package; (13)proven Broadcom proprietary All-DSP architecture.
