Product Summary
The DS4E-S-DC5V is a DS relay. The typical applications of the device include Besides telecommunications, measuring devices, office equipment, computers and related equipment, DS relays are also recommended for a broad range of applications including business devices, audio systems, and industrial equipment.
Parametrics
DS4E-S-DC5V absolute maximum ratings: (1)Carry Current: 2.00 A; (2)Coil Resistance: 2.88 kΩ; (3)Coil Voltage: 5.0 V; (4)Contact Current Rating: 600 mA; (5)Power Consumption: 200 mW; (6)Power Rating: 60.0 W; (7)Rise Time: 3.00 ms; (8)Size-Height: 9.80 mm; (9)Size-Length: 35.2 mm; (10)Size-Width: 9.91 mm; (11)Voltage Rating (DC): 220 V.
Features
DS4E-S-DC5V features: (1)Breakthrough height of 9.8 mm 386 inch beats the 10 mm; (2)Suitable for use in difficult environments; (3)Can be used with automatic solder and automatic wash systems; (4)Gold-clad twin contacts ensure high reliability; (5)Polarized magnetic circuits realize resistance to shock and vibration; (6)DIL terminal array enables use of IC sockets; (7)Widening scope of application with multicontact latching.

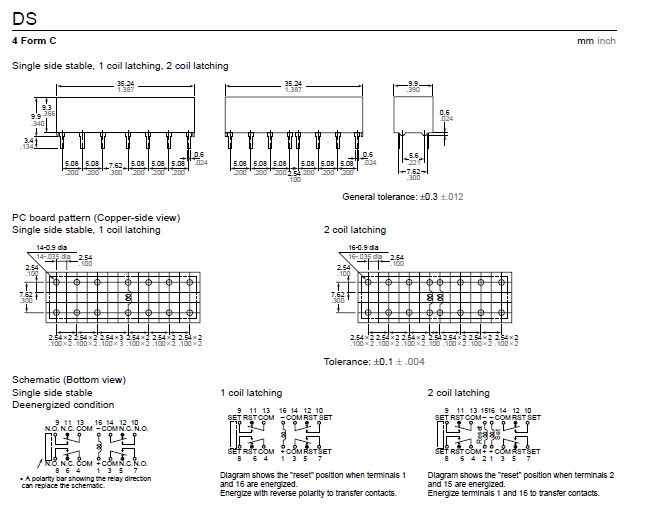

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS4E-S-DC5V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 5VDC 4PDT NON-LATCHING PCB |
Data Sheet |
Negotiable |
|
||||
 |
DS4E-S-DC5V-TB |
Panasonic Electric Works |
Low Signal Relays - PCB 4 Form C, 5VDC 4 Form C 200mW Type |
Data Sheet |
Negotiable |
|
||||
