Product Summary
The CY2305SXI-1HT is a Low Cost 3.3-V Zero Delay Buffer. The CY2305SXI-1HT accepts one reference input, and drives out five low skew clocks. The -1H versions of each device operate at up to 100-/133 MHz frequencies, and have higher drive than the -1 devices. All parts have on-chip PLLs which lock to an input clock on the REF pin. The PLL feedback is on-chip and is obtained from the CLKOUT pad. The CY2305SXI-1HT is available in two or three different configurations.
Parametrics
CY2305SXI-1HT absolute maximum ratings: (1)Supply voltage to ground potential: –0.5 V to +7.0 V; (2)DC input voltage (Except REF): –0.5 V to VDD + 0.5 V; (3)DC input voltage REF: –0.5 V to 7 V; (4)Storage temperature: –65℃ to +150℃; (5)Junction temperature: 150℃; (6)Static discharge voltage(per MIL-STD-883, Method 3015: > 2,000 V.
Features
CY2305SXI-1HT features: (1)10 MHz to 100/133 MHz operating range, compatible with CPU and PCI bus frequencies; (2)Zero input-output propagation delay; (3)60-ps typical cycle-to-cycle jitter (high drive); (4)Multiple low skew outputs; (5)Compatible with Pentium-based systems; (6)Packages: 8-pin, 150-mil SOIC package; (7)3.3-V operation; (8)Commercial and industrial temperature ranges.

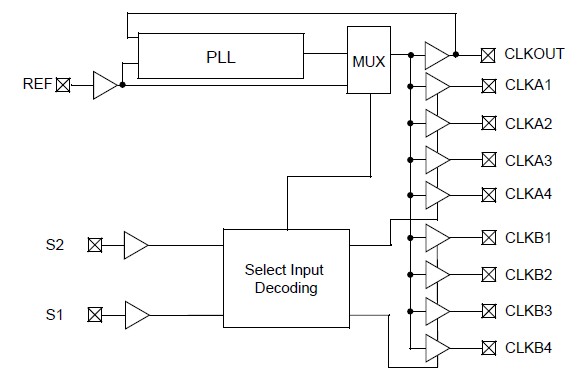

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY2305SXI-1HT |
Cypress Semiconductor |
Phase Locked Loops (PLL) 3.3VZDB IND |
Data Sheet |
|
|
||||||||||||
