CY7C1041DV33-10ZSXIT

high performance CMOS Static RAM, 4MBIT, 10NS, 44TSOP, 90 mA, 2.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $21.00~25.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $21.00~25.00

PartNumber:: CY7C1041DV33-10ZSXIT

Brand:: Cypress Semiconductor - Cypress | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dora's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:CY7C1041DV33-10ZSXIT
US $21.00 - 25.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

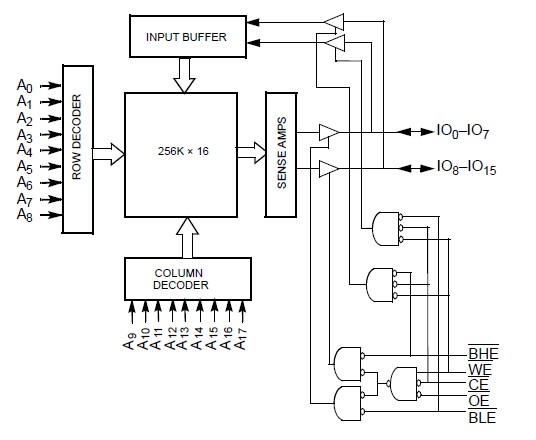

The CY7C1041DV33-10ZSXIT is a high performance CMOS Static RAM organized as 256 K words by 16-bits. To write to the CY7C1041DV33-10ZSXIT, take chip enable (CE) and write enable (WE) inputs LOW. If byte low enable (BLE) is LOW, then data from I/O pins (I/O0 to I/O7) is written into the location specified on the address pins (A0 to A17). If byte high enable (BHE) is LOW, then data from I/O pins (I/O8 to I/O15) is written into the location specified on the address pins(A0 to A17). The CY7C1041DV33-10ZSXIT is available in a standard 44-pin 400-mil wide SOJ and 44-pin TSOP II package with center power and ground (revolutionary) pinout and a 48-ball FBGA package.

Parametrics

CY7C1041DV33-10ZSXIT absolute maximum ratings: (1)Storage temperature: 65 ℃ to +150 ℃; (2)Ambient temperature with power applied: 55 ℃ to +125 ℃; (3)Supply voltage on VCC relative to GND: 0.3 V to +4.6 V; (4)DC voltage applied to outputs in high Z State: 0.3 V to VCC +0.3 V; (5)DC input voltage: –0.3 V to VCC + 0.3 V; (6)Current into outputs (LOW): 20 mA; (7)Static discharge voltage: > 2001 V(MIL-STD-883, method 3015); (8)Latch-up current: > 200 mA.

Features

CY7C1041DV33-10ZSXIT features: (1)Temperature ranges Industrial: –40 ℃ to 85 ℃; (2)Pin and function compatible with CY7C1041CV33; (3)High speed tAA = 10 ns; (4)Low active power ICC = 90 mA; (5)Low CMOS standby power ISB2 = 10 mA; (6)2.0 V data retention; (7)Automatic power-down when deselected; (8)TTL compatible inputs and outputs; (9)Easy memory expansion with CE and OE features; (10)Available in Pb-free 48-ball VFBGA, 44-pin (400-mil) molded SOJ, and 44-pin TSOP II Packages.
