Product Summary

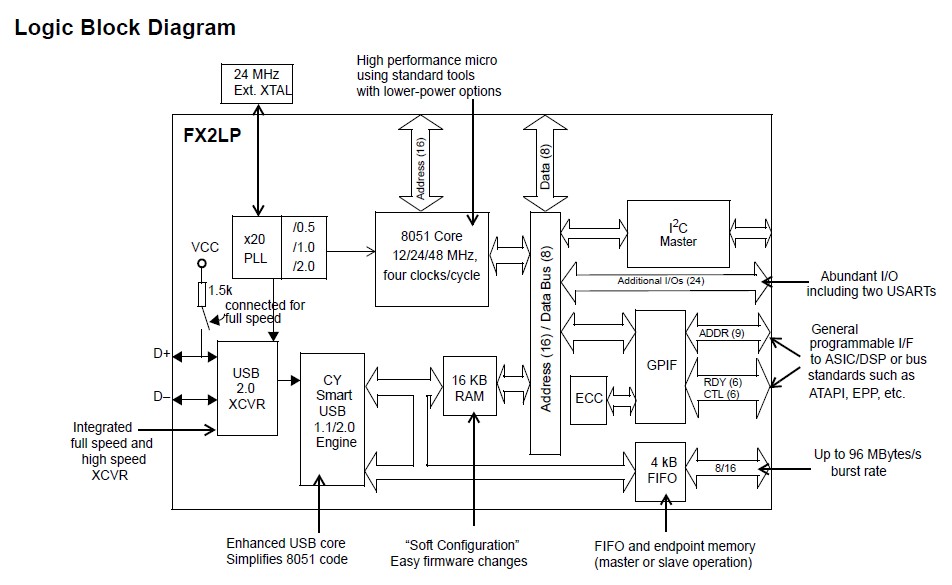

The CY7C68013A-56LTXC is an USB Microcontroller, which is a highly integrated, low-power USB 2.0 microcontroller. By integrating the USB 2.0 transceiver, serial interface engine (SIE), enhanced 8051 microcontroller, and a programmable peripheral interface in a single chip, Cypress has created a very cost-effective solution that provides superior time-to-market advantages with low power to enable bus powered applications. The CY7C68013A-56LTXC is used in Portable video recorder, MPEG/TV conversion, DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players, Networking.

Parametrics

CY7C68013A-56LTXC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Supplied: 0℃ to +70℃; (3)Supply Voltage to Ground Potential: –0.5V to +4.0V; (4)DC Input Voltage to Any Input Pin: 5.25V; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to VCC + 0.5V; (6)Power Dissipation: 300 mW; (7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port: 10 mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages): 50 mA.

Features

CY7C68013A-56LTXC features: (1)USB 2.0 USB IF high speed certified (TID # 40460272); (2)Single chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor; (3)Fit, form, and function compatible with the FX2; (4)Ultra low power: ICC No more than 85 mA in any mode; (5)16 KB of on-chip code/data RAM; (6)Four programmable BULK, INTERRUPT, and ISOCHRONOUS endpoints; (7)Additional programmable (BULK/INTERRUPT) 64-byte endpoint; (8)8-bit or 16-bit external data interface; (9)Smart media standard ECC generation; (10)3.3 V operation with 5 V tolerant inputs; (11)Vectored USB interrupts and GPIF/FIFO interrupts; (12)Separate data buffers for the setup and data portions of a CONTROL transfer.
