Product Summary
The MPC8270ZUUPEA is an integrated communications processor.
Parametrics
MPC8270ZUUPEA absolute maximum ratings: (1)Core supply voltage, VDD: 1.45 to 1.60 V; (2)PLL supply voltage, VCCSYN: 1.45 to 1.60 V; (3)I/O supply voltage, VDDH: 3.135 to 3.465 V; (4)Input voltage, VIN: GND (-0.3) to 3.465 V; (5)Junction temperature (maximum), Tj: 105℃; (6)Ambient temperature, TA: 0 to 70℃.
Features
MPC8270ZUUPEA features: (1)A core version of the EC603e microprocessor; (2)System core microprocessor supporting frequencies of 166-450MHz; (3)Separate 16-Kbyte data and instruction caches:; (4)Four-way set associative; (5)Physically addressed; (6)LRU replacement algorithm; (7)Architecture-compliant memory management unit (MMU); (8)Common on-chip processor (COP) test interface; (9)High-performance (SPEC95 benchmark at 450 MHz; 855 Dhrystones MIPS at 450 MHz); (10)Supports bus snooping for data cache coherency; (11)Floating-point unit (FPU).

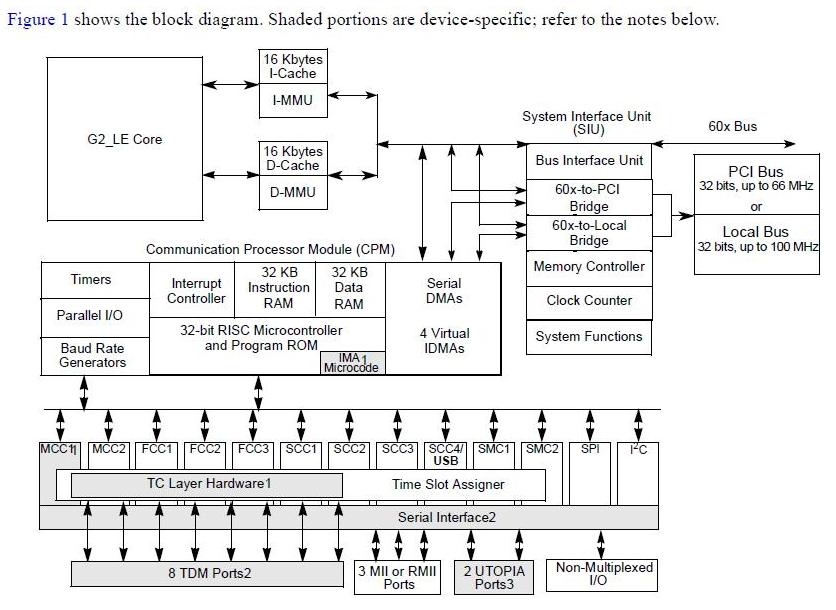

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MPC8270ZUUPEA |
Freescale Semiconductor |
Microprocessors (MPU) PQ II HIP 7 REV A |
Data Sheet |
|
|
|||||||||||||
