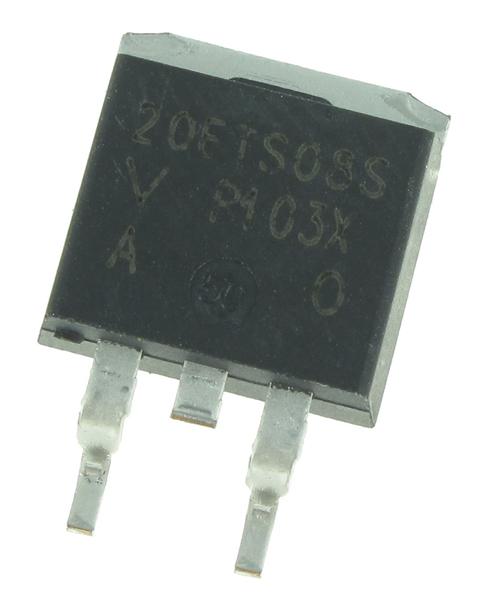

20ETS08S

800V, 20A, 20ETS08S, surface mountable, input rectifier diode, TO-220

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: 20ETS08S

Brand:: International Rectifier - IR | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dora's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-07

From Other Seller

Part Number:20ETS08S
US $0.10 - 1.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 20ETS08S is a input rectifier diode which has been optimized for very low forward voltage drop, with moderate leakage. The glass passivation technology used has reliable operation up to 150℃ junction temperature. Typical applications of the 20ETS08S are in input rectification and the 20ETS08S is designed to be used with International Rectifier Switches and Output Rectifiers which are available in identical package outlines. Fully isolated package (VINS = 2500 VRMS).

Parametrics

20ETS08S absolute maximum ratings: (1)Max. Average Forward Current, @ TC = 88℃, 180° conduction half sine wave, IF(AV): 20A; (2)Peak One Cycle Non-Repetitive, 10ms Sine pulse, rated VRRMapplied, IFSM Max: 250A; (3)Surge Current, 10ms Sine pulse, no voltage reapplied, IFSM Max: 300A; (4)Max. I2t for fusing, 10ms Sine pulse, rated VRRMapplied, I2t: 316A ; (5)Max. I2t for fusing, 10ms Sine pulse, no voltage reapplied, I2t: 442A; (6)Max. I2√t for fusing, t = 0.1 to 10ms, no voltage reapplied, I2√t: 4420A2√s.

Features

20ETS08S features: (1)Sinusoidal, IF(AV): 20A; (2)waveform, IF(AV): 20A; (3)VRRM: 800 to 1600V; (4)IFSM: 300A; (5)VF @10 A, TJ = 25℃: 1.0V; (6)TJ: - 40 to 150℃.
