Product Summary
The EPF6016ATC100-3N is a programmable logic device (PLD). The device provides a low-cost alternative to high-volume gate array designs. The EPF6016ATC100-3N is based on the OptiFLEX architecture, which minimizes die size while maintaining high performance and routability. The EPF6016ATC100-3N has reconfigurable SRAM elements, which give designers the flexibility to quickly change their designs during prototyping and design testing. Designers can also change functionality during operation via in-circuit reconfiguration.
Parametrics
EPF6016ATC100-3N absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: –2.0 to 7.0 V; (2)VI, DC input voltage: –2.0 to 7.0 V; (3)IOUT, DC output current, per pin: –25 to 25 mA; (4)TSTG, Storage temperature No bias: –65 to 150℃; (5)TAMB, Ambient temperature Under bias: –65 to 135℃; (6)TJ, Junction temperature: 135℃.
Features
EPF6016ATC100-3N features: (1)In-circuit reconfigurability (ICR) via external configuration device or intelligent controller; (2)5.0-V devices are fully compliant with peripheral component ; (3)interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2; (4)uilt-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990, available without consuming additional device logic; (5)MultiVolt TM I/O interface operation, allowing a device to bridge between systems operating at different voltages; (6)Low power consumption (typical specification less than 0.5 mA in standby mode; (7)3.3-V devices support hot-socketing.

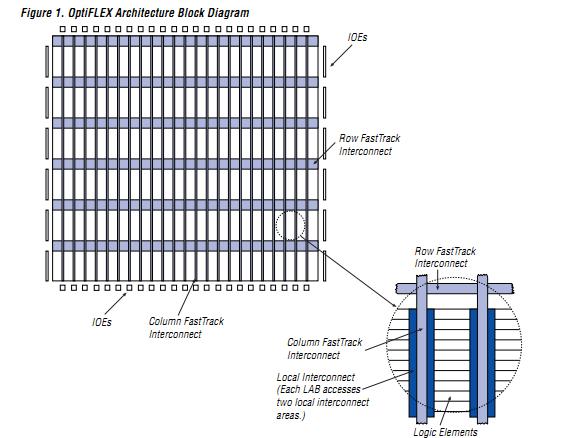

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPF6016ATC100-3N |
|
IC FLEX 6000 FPGA 16K 100-TQFP |
Data Sheet |
|
|
||||||
