Product Summary

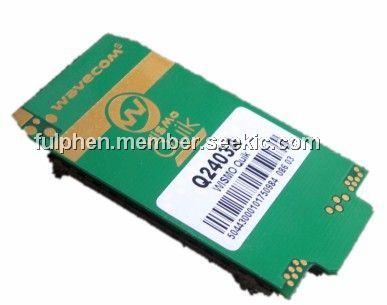

The Q2403A is a self-contained E-GSM/GPRS 900 / 1800 dual band module.
Parametrics
Q2403A absolute maximum ratings: (1)SIM DATA VIL lIL = 1mA: 0.3xSIMVC c V; (2)SIMRST, SIM DATA SIMCLK VOH Source current = 20yA: SIMVCC - 0.1V V; (3)SIMRST, SIM DATA SIMCLK VOL Sink current = 200uA: 0.1 V; (4)SIMVCC" Output Voltage: 2.70 to 2.85 V; (5)SIMCLK Rise/Fall Time Loaded with 30pF: 50 ns; (6)SIMRST, SIM DATA Rise/Fall Time Loaded with 30pF: 1 fJS; (7)SIMCLK Frequency Loaded with 30pF: 3.25 MHz.
Features
Q2403A features: (1)58.3 x 32.2 x 3,9 mm [TBC]; (2)2 Watts EGSM radio section running under 3,6 Volts; (3)1 Watt GSM1800 radio section running under 3,6 Volts; (4)Digital section under 2.8 Volts; (5)3V SIM interface; (6)Real Time Clock with calendar; (7)Battery charger; (8)Echo Cancellation + noise reduction Full GSM or GSM/GPRS software stack Hardware GPRS class 2 capable Complete shielding.
Diagrams
 |
