Product Summary

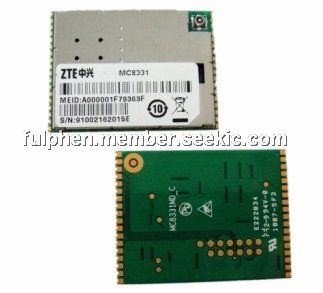

The MC8331 module is an industrial grade module based on QUALCOMM QSC6010 single chipset platform, which is developed by ZTE with independence patents. With features like stamp-hole connecting and single chipset scheme, its cost is reduced, performance is more stable and body is thinner.

Parametrics

MC8331 absolute maximum ratings: (1)Frequency range: 824 ~ 849 MHz; (2)Maximum frequency bias: ±300Hz; (3)Maximum output power: 23dBm ~ 30dBm; (4)Minimum output power: < -50dBm; (5)Standby output power: <61dBm; (6)VSWR: 1.5:1 maximum; (7)gain: At least 0 dBi in one direction; (8)Input impedance: 50Ω; (9)Polarized form: Vertical polarizing; (10)Max. current: 630mA (@-104dbm); (11)Call current: 230mA (@-75dbm); (12)Idle current: (average) 3mA (@-75dbm).

Features

MC8331 features: (1)Modulation voltage: 3V; (2)Demodulation frequency band: 0.15~80MHz; (3)Frequency pace: 1%; (4)Interference signal: 80% scope modulate to signal through 1k sine wave; (5)Reference standard: GB/T 17626.6-1998.

Diagrams

MC8331 block diagram
