Product Summary
The UB-93 is an ultra miniature 17 x 22.4 x 3 mm GPS module designed by low power consumption MTK GPS solution. It provides superior sensitivity up to -159dBm and fast Time-To-First-Fix in navigation application. The stable performance of UB-93 is your best choice to be embedded in your portable device design, like PDA, PND, mobile phone, digital camera for GPS service.
Parametrics
UB-93 absolute maximum ratings: (1)GPS technology: MTK GPS chipset ; (2)Frequency: L1, 1575.42MHZ ; (3)C/A Code: 1.023MHZ chip rate ; (4)Channels: 32 channels all in view searching ; (5)Sensitivity: Batter than -159dBm ; (6)Position: Without aid:3.0 M 2D-RMS ; (7)DGPS(WAAS, EGNOS, MSAS, RTCM):2.5 M ; (8)Velocity: Without aid:0.1 M/sec ; (9)Time: 0.1 microsecond. Sync GPS time.
Features
UB-93 features: (1)Small form factor: 17 x 22.4 x 3 mm; (2)RoHS/WEEE compliant; (3)High sensitivity -159dBm; (4)Searching up to 32 Channel of satellites; (5)Fast Position Fix; (6)Low power consumption; (7)RTCM- in ready; (8)Built-in WAAS/EGNOS/MSAS Demodulator; (9)Support NMEA0183 V 3.01 data protocol.; (10)Real time navigation for location based services; (11)For Car Navigation, Marine Navigation, Fleet Management, AVL and Location-Based Services, Auto Pilot, Personal Navigation or touring devices, Tracking devices/systems and Mapping devices application.

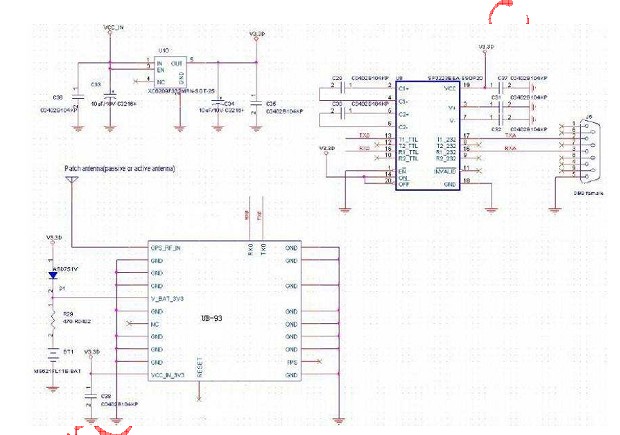

Diagrams
