Product Summary
The YSS222 is an audio signal processing LSI for the key control function of the one channel. The key of 1800 cent to 1200 cent can be managed in each 100 cent.
Parametrics
YSS222-D absolute maximum ratings: (1)Power supply volatge: -0.5 to 7.0V; (2)Input voltage: -0.5 to VDD+0.5V; (3)Output current: -20 to 20mA; (4)Operating temperature: 0 to 70℃; (5)Storage temperature: -50 to 125℃.
Features
YSS222-D features: (1)Key control of 1800 cent to 1200 cent by 100cent; (2)14bit floating A/D and D/A converter are built in to cope with analog signal; (3)Sampling frequency of the internal signal processing is 16kHz; (4)Sampling frequency of A/D and D/A converter is 32kHz; (5)RAM for the key control processing is built in.; (6)Three selective modes for specifying the amount of the key shift; (7)5V single power supply and Si-gate CMOS process; (8)16-pin DIP.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

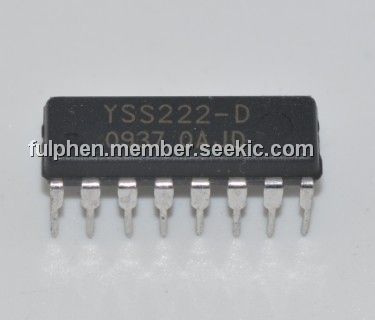

 YSS222-D |
Other |
|
Data Sheet |
Negotiable |
|
||||
