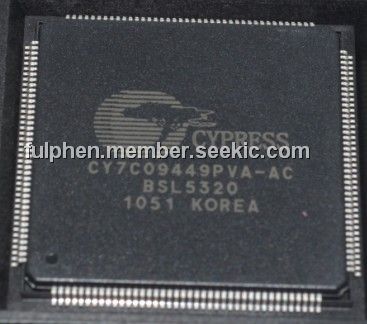

CY7C09449PVA-AC

128KBIT, 50MHZ, CY7C09449PVA-AC, PCI interface controller, TQFP, 250 mA, –0.5V to +4.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $28.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $28.00~30.00

PartNumber:: CY7C09449PVA-AC

Brand:: Cypress Semiconductor - Cypress | Pack: TQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dora's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-07

From Other Seller

Part Number:CY7C09449PVA-AC
US $28.00 - 30.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

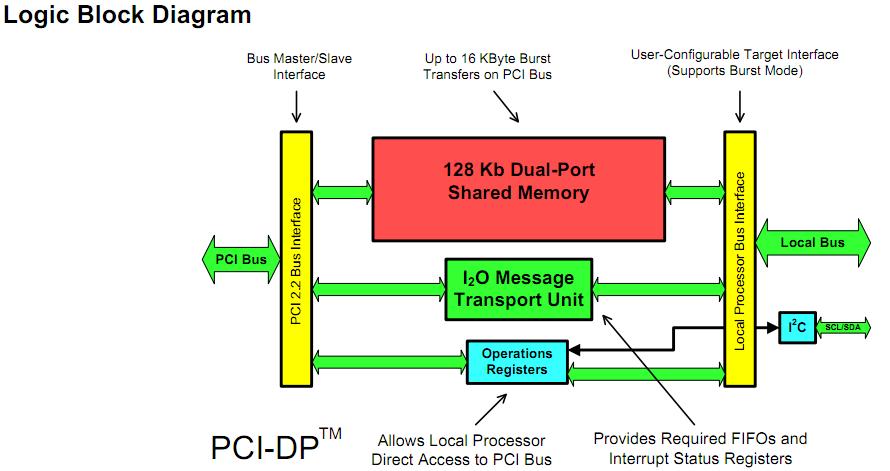

The CY7C09449PVA-AC is a PCI interface controller. The CY7C09449PVA-AC provides a PCI master and target interface with direct connections to many popular microprocessors. It provides 128Kb of dual-port SRAM that is used as shared memory between the local microprocessor and the PCI bus. An I2O message unit, complete with message queues and interrupt capability, is also provided. The CY7C09449PVA-AC allows the designer to interface an application to the PCI bus in a straightforward and inexpensive way.

Parametrics

CY7C09449PVA-AC absolute maximum ratings: (1)Storage Temperature: –55 to +125℃; (2)Ambient Temperature Under Bias: –40 to +85℃; (3)Max Operating Current (IDD): 250 mA; (4)Voltage on Any VDD Pin Referenced to VSS: –0.5V to +4.0V; (5)Voltage on Any Signal Pin Referenced to VSS: –0.5V to +7.0V.

Features

CY7C09449PVA-AC features: (1)128 Kb of dual-ported shared memory; (2)Master and target PCI Specification 2.2 compliant interface; (3)Embedded host bridge capability; (4)Direct interface to many microprocessors; (5)I2O message transport unit; includes four 32-bit, 32 entry FIFO; (6)Local bus clock rates up to 50 MHz; (7)Single 3.3V power supply including compatibility with 3V and 5V PCI bus signaling; (8)160-pin thin plastic quad flat package.
