Product Summary
The GMS34140TKDP is a remote control transmitter which can incorporate maximum 1,024 words for program memory. Program counter PC and page address register are used to address the whole area of program memory having an instruction (8bits) to be next executed. The program memory consists of 64 words on each page, and thus each page can hold up to 64 steps of instructions. The program memory is composed as shown below.
Parametrics
GMS34140TKDP absolute maximum ratings: (1)Supply Voltage: -0.3 to 7.0V; (2)Programming Voltage: -0.3 to 13.5V; (3)Power dissipation: 700mW; (4)Storage temperature range: -55 to 125℃; (5)Input voltage: -0.3 to VDD+0.3V.
Features
GMS34140TKDP features: (1)43 types of instruction set; (2)3 levels of subroutine nesting; (3)1 bit output port for a large current (REMOUT signal); (4)CMOS process (3.0V or 5.0V power supply); (5)Stop mode (Through internal instruction); (6)Released stop mode by key input; (7)Built in capacitor for ceramic oscillation circuit at KHz version; (8)Built in a watch dog timer (WDT).

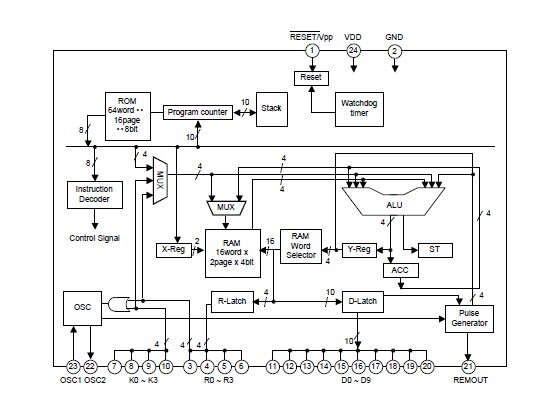

Diagrams
 |
