Product Summary

The CY8C21434-24LTXI is a PSoC mixed-signal array with On-Chip Controller device. The CY8C21434-24LTXI is designed to replace multiple traditional MCU-based system components with one, low cost single-chip programmable component. A PSoC device includes configurable blocks of analog and digital logic, as well as programmable interconnect. This architecture allows the user to create customized peripheral configurations, to match the requirements of each individual application. Additionally, a fast CPU, Flash program memory, SRAM data memory, and configurable IO are included in a range of convenient pinouts.

Parametrics

CY8C21434-24LTXI absolute maximum ratings: (1)Storage Temperature: -55 min, 25 typ, +100 max ℃; (2)Ambient Temperature with Power Applied: -40 to +85 ℃; (3)Supply Voltage on Vdd Relative to Vss: -0.5 to +6.0 V; (4)DC Input Voltage Vss: - 0.5 to Vdd + 0.5 V; (5)DC Voltage Applied to Tri-state Vss: - 0.5 to Vdd + 0.5 V; (6)Maximum Current into any Port Pin: -25 to +50 mA; (7)Electro Static Discharge Voltage: 2000 V; (8)Latch-up Current: 200 mA.

Features

CY8C21434-24LTXI features: (1)Powerful Harvard Architecture Processor; (2)Advanced Peripherals (PSoC Blocks); (3)Flexible On-Chip Memory; (4)Complete Development Tools; (5)Precision, Programmable Clocking; (6)Programmable Pin Configurations; (7)Versatile Analog Mux; (8)Additional System Resources.

Diagrams

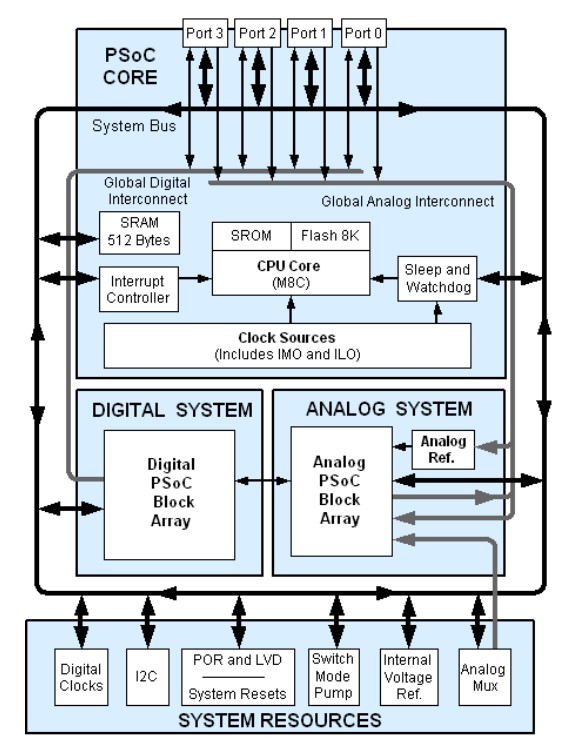

CY8C21434-24LTXI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CY8C21434-24LTXI
CY8C21434-24LTXI
Cypress Semiconductor
Programmable Systems-on-a-Chip (PSoC) PSoC, 28I/O, 8K Fsh 512 bytes RAM
Data Sheet
0-1: $2.04
1-25: $1.76
25-100: $1.67
100-250: $1.39
CY8C21434-24LTXIT
CY8C21434-24LTXIT
Cypress Semiconductor
Programmable Systems-on-a-Chip (PSoC) PSoC, 28I/O, 8K Fsh 512 bytes RAM
Data Sheet
0-1865: $1.29
1865-2000: $1.25
2000-2500: $1.25
2500-5000: $1.22
